New products and services of interest to
lasersts. Submit your new product information and images in .gif or .jpg
format to our E-mail or contact us.
CD-ROM from International Laser Productions
Located in Bali ,Indonesia, International Laser Productions
has, in the last five years, established itself as the most innovative,
creative and reliable laser projection company in Indonesia. LPI is pleased
to announce a new CD-ROM of Laser Clip-Art, Laser Animation and complete
laser shows. The library is provided in Pangolin .LDB Format with the shows
in Showtime.SHO Format. The price @ US$ 1,500.00. For a Complete Listing of
CD Contents and Sample Download visit http://members.xoom.com/Laserpro/ILP/
or contact Terrence Green by E-mail to email@example.com

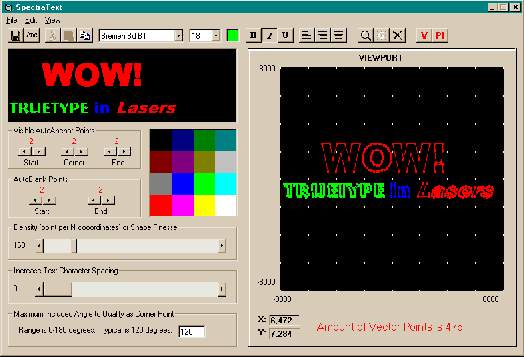

Our new program in the SpectraScan family for Pangolin LD or
ILDA frame file formats directly allows you to convert text from any
combination of TrueType fonts in mixtures of colours, sizes, and italics and
position them as you like. You can type in the window or drag-and-drop from
Word or load in a text file from disk.
The output is proportional, beautifully shaped outline
letters at the point density you select. RichTextFormat for input is
supported as is vector or point mode for the laser output. Automatic corner
recognition and user-controlled finesse/point density are key features. A
versatile viewport with scrolling and zoom is of course a primary design
element. SpectraText is available in two versions. One is designed for
Pangolinís LD family with file saving in .ldb format or direct placement
in a QuadMod32 frame number.
The other is a new addition to our SpectraScan family as it can run without
any proprietary card. Output mode is saving to disk as ILDA format frames.
Expand your artistic design capability with full font power including
localised language fonts for tildes, umlauts, accent marks, and foreign
glyphs. Please your clients by selecting the fonts they want you to use
right from their logos and brochure presentations.
All this new creative power is available in a package featuring ease of use
and low cost. Holo-Spectra's SpectraText is $495.
Info: Bill Arkin - firstname.lastname@example.org
introduces Scanner Safety Board
MediaLas Laserproducts GmbH is proud to present their new
scanner safety board, which is required by European safety associations at
Laser show installations. It meets all the requirements for to the safety
regulation VDE 0837.
The board detects errors and damages during safety cycles and recognises
still/static beams in the audience as well as broken torsion bars or blown
It is possible to add the CAT-safe board to every closed loop scanner on the
market, even as a retro-fit, to make it VDE compatible.
detects an error
The board measures all parameters more than 100 times a second. It compares
computer input with position detection if they match together. If not, PCAOM
output will shut down.
If there is a beam standing/static for more than 50ms (0.05s) in the same
position within the safety area, the PCAOM output will shut down until the
problem is solved.
If power drops or one voltage is missing, PCAOM output will shut down.
If a parameter on the safety board is not OK, then the watchdog stops
The board has 4 trimmers and one invert switch for changing the detection
area. It is possible to invert this area: Safety detection inside this area
/ safety detection outside this area. It is also possible to exclude one or
more areas from detection to prevent the PCAOM from shutting down when
scanning onto mirrors.
For more information please visit our WebPages at:
announces YAG power supply
MediaLas Laserproducts GmbH are proud to announce our new DPSS power
supply for frequency doubled YAGs with an operating current of up to 1,200
mA. A special feature of these PSUs is the modulation input for blanking
For further information and prices, visit the MediaLas
web-site and click on the Lasers button.
Laser display happenings from around the world. If you
would like your show or installation information here, please E-mail our
E-mail or contact us.
from SAE G-10T meeting, December 1 - 4, Orlando
Murphy - Pangolin Laser Systems
The following is a report on the latest SAE G-10T meeting on
"Laser Safety Hazards" in airspace. This is the group which is an
advisory "farm team" for the U.S. Federal Aviation Administration,
trying to stop entertainment and other lasers from presenting a hazard to
The meeting was held December 1-4 in Orlando. In attendance from the laser
entertainment industry were:
Tony Zmorenski, ILDA Board Member and Walt Disney World
Greg Makhov, ILDA Safety Committee chair
Patrick Murphy, ILDA Airspace Issues Co-ordinator
Jay Parkinson, Rockwell Laser Industries (Jay was with Laser Fantasy
International for 12 years, before moving to RLI)
Greg Rockwell, Rockwell Laser Industries
Jim Ponce, Rockwell Laser Industries
In addition, Drew Foster of AVI-Imagineering With Lasers helped out one
day with real-world examples.
This was one of the most productive meetings ever. We worked
on the exact wording of new regulations which the FAA requested. The light
show industry was able to make a number of points which enhance both
aircraft safety and our ability to do timely shows.
We also heard disturbing reports about increasing numbers of laser pointer
incidents (mostly towards police helicopters). It is clear that the laser
problem is no longer entertainment-only, and that incidents are no longer
automatically assumed to be due to light show lasers.
Sometime in mid-1999, the FAA should be issuing a revision
to their procedures concerning airspace.
The current regulations, known as "7400.2D", will be greatly
stripped down. The new regulations, 7400.2E, will focus only on what the FAA
airspace procedures specialists will need to know, in order to process laser
applications. It will not have information useful to the applicants (i.e.,
laser show companies). This information is expected to be in a future
document that will advise applicants.
It was felt this separates the FAA's regulatory responsibility from their
advice or recommendations to applicants.
The FAA has asked the SAE G-10T committee to help with the 2E draft. This is
what was worked on at the December 1-4 Orlando meeting.
The FAA has a new attitude of urgency towards the laser
issue. They finally want to fund the Oklahoma City simulator testing (to
gauge the effects of laser light on pilot performance). They also want SAE
G-10T to develop many new documents: the 7400.EF regs, an "Advisory
Circular" with information for pilots, and a document which attempts to
summarise all information gathered to date relating to laser/aircraft
James Karanian, an FAA procedures specialist, has been assigned by the FAA
to get these new documents. He is working with the FAA's Larry Tonish and
others on the SAE G-10T (including ILDA) to produce these documents.
FOR LASER REPORTING
One of the documents worked on was proposed by Rockwell
Laser Industries. It is a reporting form with (hopefully!) all of the
details that the FAA needs to evaluate a laser installation.
The "FAA Laser Light Show Report" form should be available as a
Microsoft Word document at Rockwell's website shortly (www.rli.com).
One thing which the FAA made clear is that they want laser companies to use
compasses, inclinometers and (if appropriate) GPS to verify any beam
VERSION OF SKYZAN COMING
Rockwell Laser Industries currently sells a program called
"Skyzan" which does laser safety calculations for outdoor shows.
RLI showed an alpha version of Skyzan 2.0. This will have integrated
reporting, so not only can a laser show company do calculations, they can
also generate reports for the FAA. The resulting "FAA Laser Light Show
Report" form will be the same one used by the FAA. Also, the FAA
may want a copy of the Skyzan file so they can check the laser company's
calculations and do a "what if" analysis, without tedious
re-entering of the data.
The new program may be released in the second quarter of 1998. RLI is
looking for any suggestions from laser companies before the final version is
CONCERNS OVER LASER POINTERS
The meeting heard a presentation by Captain Dan Lindsay of
the L.A. Department of Airports. He discussed a growing number of incidents
where laser pointers have been aimed at police helicopters. Due to the low
altitude where the helicopters fly, the beams can present a startle, glare
or even flashblindness hazard to the pilot.
Formerly, SAE and ILDA thought that laser pointers were so weak that they
were not a significant threat. This is still probably true for aircraft. But
because helicopters are low and hover, they are apparently susceptible to
dazzle from pointers.
Ironically, because the pointer incidents happen so often, the police are no
longer worried that they are being targeted by a gun with a laser sight. (At
least they're not TOO worried...) But they obviously are concerned with the
One man in California was apprehended after repeatedly shining a 10 mW He-Ne
onto a helicopter. During questioning, he initially said that he was playing
with his dog, and the beam must have slipped out between the slats of his
fence. He was charged with a felony (apparently the first person in
California to be so charged for a laser aiming incident). After questioning,
he asked if he could have his laser back!
I asked Lindsay whether he felt that legal pointers (5 mW and under) had low
enough power so they were not a threat. He said if he had his way, he would
not allow anything greater than 1 mW to be pointed at an aircraft.
Lindsay and his fellow law enforcement officers are now worried about the
far brighter green laser pointers which are beginning to appear. They are
also worried about deliberate use of higher power (non-pointer) lasers.
Most of the meeting was taken up with the FAA 7400.2E
rewrite. ILDA members doing outdoor shows in the US should review the draft
to see if there are any potential problems for our operations.
Members outside the US also should be aware of what could happen in their
countries. For example, a regulator from Transport Canada sat in on the
meeting. He indicated he would want to adopt US standards if possible, to
make evaluation and compliance "harmonised" in the two countries.
Barney Kaelin - Laser Magic Productions
I had to smile on reading a recent news item about the
members of the rock band KISS getting mad at a kid in the crowd for zapping
them with a laser pointer. I don't mean to discount the seriousness of the
We did a couple of photo shoots with Kiss over the past few weeks and as a
prelude to putting the guys into a laser tunnel I gave them a very stern
laser safety warning about not looking into the beams etc. To illustrate a
point I used a 10 watt argon beam to set fire to a piece of paper in order
to get their attention. It worked. For the rest of the photo session the
band treated the laser tunnel with the greatest respect bordering on fear.
To my surprise they told me that they had never worked with lasers before.
I can image their terror remembering that flaming piece of paper while being
zapped by the laser pointer on stage. The photographic results of one of
these sessions will appear in the April issue of Playboy magazine.
The seriousness of this (not so isolated) occurrence is starting to make its
way into the performance industry's consciousness. It won't be long before
some stage performers are going to be wearing glasses with laser safety
coatings on them. It is just too easy for a kid to sneak a tiny pointer into
a show in order to win "bragging rights" that he zapped a
superstar with a laser beam.
Warns Crowd About Lasers
NOVEMBER 23, 15:01 EST - EAST RUTHERFORD, N.J. (AP)
of the rock group Kiss gave a tongue-lashing to the crowd after
someone shined a laser pointer in drummer Peter Criss' eyes.
Criss finished singing the ballad ``Beth'' at the Continental
Airlines Arena on Sunday and then nearly stormed off the stage,
furious that someone was blinding him with one of the hand-held
He rushed to the side of the stage, grabbed a microphone and
screamed a profanity at the responsible party. Lead singer Paul
Stanley challenged whoever was shining the beam at band members to
fight him on stage.
"In every crowd, there's one or two people who don't belong
here,'' he said. ``Now I know you want to bring it to school
tomorrow when you go to sixth grade, but leave it at home when you
go to the show."
Images celebrates 25th
Bill Arkin, Holo-Spectra Inc.
|Congratulations to Laser Images on its Silver Anniversary (25
Laser Years) of producing the LASERIUM show at the Los Angeles
Not only is this the longest running theatrical attraction here in
southern California, but it is almost certainly the anniversary of
the first public laser display show. On November 19, 1973, an
unpublicised presentation in the pit by Ivan Dryer at the LA
planetarium was the start of an artistic and corporate expansion
that has totally influenced every single person and company that has
done laser display since. Ivan (Laser Images founder, President, and
also ex-ILDA president) noted that probably only in Los Angeles at
that time could they have drawn 500 people the first night.
Laser Images celebrated with a special invitation show which
featured one of their very first pieces and their most advanced current
show, "Laser Visions". They also interspersed this presentation
with numerous Laserium milestones. The (unfortunate for LA) phrase that
entered my head as I watched the endless reel of city names and dates and
show productions was "spread like wildfire". Ivan informed the
experienced but excited audience that Laserium had cast its photon glow over
nearly 20 million people in 45 world-wide long-running venues.
The transformation from the early show "The Blue Danube" staring
those four overworked lissajous character actors EllipseBlue, EllipseGreen,
EllipseRed, and EllipseYellow to the complexity of their latest show, that
only the sophisticated CS Projectors can render, was really amazing to me to
ponder since I have also been immersed in this for 25 years. All together -
a very enjoyable evening and a powerful measuring stick for us all.
Congratulations Ivan and all the programmers and laserists who have sat
behind the CS series' panels.
F/X '99 Dates Announced
The fifth annual Laser F/X conference will be held May 29 to
31 at the Burlington Holiday inn in Burlington Ontario. This is the world's
only open laser conference that anyone may attend.
Saturday the 29th - Dinner and open house
at the Laser F/X studio
Sunday the 30th - Trade show and Brewster
Monday the 31st - Seminars and LaserFest
Further information will be announced as it becomes
Stack moves to 3DTL
It was announced this week that 3DTL has received $1.9M in a grant from
the US National Institute of Standards and Technology (NIST). This grant is
provided under the ATP Advanced Technology Program. Under the Regan
Administration, The National Bureau of Standards was changed to the NIST and
given the responsibility for the promotion of new technologies in the USA.
3D is expected to received several million dollars more in US government
agency sponsored grants before the end of the year.
3DTL and the Crossed Beam Display (CBD) is the brain child of Dr.Elizabeth
Downing a recent Stanford University student. ILDA members will be familiar
with her from the presentation at the 1996 ILDA ATW conference in
Burlington, Ontario, Canada.
The Crossed Beam Display works by a process of Two Photon Up-Conversion.
Where two infrared laser beams of differing wavelengths are intersected
inside a special floruide glass cube, an upconversion flourescence process
produces a visible spot. To create imagery, the intersection of these beams
are scanned around in 3 space, generating a real volumetric image.
|Casey Stack has been named the Vice President of Engineering and
Manufacturing. Stack is one of 4 start-up team members. 3DTL already
has orders from several government agencies for CBDs. Recently the
technology has been expanded to deliver displays which are 6 inches
on a side, 216 cubic inches.
Although 3DTL is effectively a start up company it is has already
shipped proof of principle and pre-production models. "This
technology is real and very practical for several markets",
says Stack. "There is no pie in the sky here, we don't need to
break any laws of physics or find a source for the material "unobtanium".
There are already specific applications beating down our door to get
their hands on the product as it functions today. It is really
exciting to be invited to join a project with this much
potential." Stack starts with 3DTL in October, a move which
will take him to San Jose California.
Yazell joins Laser Physics
|Salt Lake, 01 Oct
1998: Laser Physics announced that Bob Yazell
is joining the company as Vice President of Sales and Marketing. Bob
is will known in the laser display industry from his days at
Coherent and his work with ILDA
After a five year hiatus from ILDA, Bob Yazell will be returning to
the group as VP of Sales and Marketing for Laser Physics, a leading
manufacturer of air-cooled lasers. During his time away, Bob has
been busy working as a consultant, and, most recently, as Director
of sales for ILC Technology - a LAMP company. How boring that must
have been - incoherent, broadband, uncollimated, efficient photons.
He claims he was responsible for $16M in business for medical
endoscopes, dental curing, forensics, spectroscopy, and even some
In his new role at Laser Physics, Bob promises to help us find new
low-cost, high power laser sources (proving he himself is incoherent, a true
glutton for punishment, and he must STILL be on something funny). Once a
laser person, always a laser person. Bob says he is looking forward to
seeing all his old friends (and competitors) in Amsterdam.
You can reach Bob at email@example.com
York Times publishes "How Laser Shows Get Their Dazzle" article
On September 24th, The New York Times published an article entitled
"How Laser Shows Get Their Dazzle" By David Kushner. The article
discusses the impact and popularity of planetarium style laser shows and
estimates them to be worth over $1 million per year. The article is
accompanied by an excellent diagram showing how laser projectors work.
Excerpts from the article:
"As rockers lean back to gaze at a planetarium's dome, they see a
glowing image pulsing in time with the drumbeat of the music. A figure of a
hippie wearing neon red bell-bottoms and playing a quivering electric guitar
disintegrates in a loud crash of cymbals and is replaced by a fluorescent
wash of abstract designs that coalesce into luminous rising steps.
"Stairway to Heaven" by Led Zeppelin has finished to celebratory
fist-pumping by the audience, ending this laser light show. Today, about 25
years after these midnight displays of pop culture began, such kaleidoscopic
blends of laser art and radio favourites can still be found in a few dozen
places nation-wide, like New York City and Bradenton, Fla." . . . .
"By most accounts, the laser show era was an outgrowth of the
fascination of a California filmmaker, Ivan Dryer, with the laser
experiments of a physicist in 1970. When Dryer documented the work, he said,
he found himself "confronted by an eerie sci-fi environment." So
Dryer, 59, the unofficial father of laser light shows, began his own laser
productions, including a stint creating laser effects for an Alice Cooper
concert tour." . . . .
"The International Laser Display Association estimated that the
planetarium market generated $1 million per year in ticket sales but that
the bulk of the laser art business came from events like product
introductions and Las Vegas stage shows. Dick Sandhaus, co-founder of the
association, estimated that non-planetarium business generated tens of
millions of dollars per year." . . . .
"Dryer predicts that the laser shows' future will be in large-screen
formats. The shows of the future, instead of being shown in planetariums,
will be displayed in Imax-style theatres that will combine traditional films
with live laser effects, he said. Still, for many rock fans, nothing will
replace the simple thrill of laser Zeppelin as it exists today." . . .
You can read the full article, and view the diagrams on-line at the New
York Times web-site. Registration is required to access the article
however it is fast and free.
Earls Laser Pioneer - 1934-1998
Cambridge, Mass. - Paul Earls, an electronic music composer who
worked to combine music and visual arts, died Monday Sept. 7 of
heart failure. He was 64. Earls, who experimented with laser and
electronic effects in his music, was affiliated with the Center
for Advanced Visual Studies at the Massachusetts Institute of
Technology. He also taught at the Massachusetts College of Art.
Paul contributed to a Washington DC art installation called "Centerbeam".
It included holograms from Harriet Casdin Silver mounted on a long
pipe which emitted steam. A laser scanner projected crude graphics
through the steam and onto the side of the Smithsonian
Institution's National Air and Space Museum.
FOR PAPERS AND PRESENTATIONS
ILDA ADVANCED TECHNOLOGY WORKSHOP
You are invited to present a new product or interesting technology at the
upcoming Advanced Technology Workshop of the International Laser Display
This invitation is extended to manufacturers of laser or lightshow related
products, research labs with innovative ideas for laser or lightshow related
technologies and other individuals who wish to assess the applicability of
non-laser related technologies to the field of laser display.
The Advanced Technology Workshop, now in its seventh year, is a forum for
technology development as well as a showcase of new products. Vital laser
display products are developed and commercialised at the ATW, where
technology and product manufacturers come together with laser display
industry developers. Manufacturers can perform market-wide research and
determine key direction and parameters, and ILDA members can learn about the
latest technology developments.
Paper presentations are typically 10 to 30 minutes in length. New product
and interesting technology presentations are typically 5 to 15 minutes in
length. There is an additional 3 to 5 minutes given for questions.
ABOUT THE CONFERENCE
The ILDA conference is the annual meeting of the International
Laser Display Association (ILDA). ILDA members participate in many aspects
of laser display technology, with a strong focus on the laser entertainment
and commercial information display industries.
The ATW is held as the first event of the ILDA conference and is open to all
members, technical and non-technical alike. The time for the ATW is
Saturday, November 7, from 10:00 until 14:30. There are other ILDA events
which extend through the end of Monday, November 9.
This year, the ILDA conference will be held in Amsterdam, at the Hotel
Mercure. This is situated near the river "Amstel", on the
outskirts of Amsterdam. The distance to the city centre is about 10 minutes
by metro, and about 20 minutes to Amsterdam's "Schiphol" airport.'
If you have a new product or interesting technology that you would like to
present, please contact:
ILDA Technical Committee Chairman
Phone: (407) 299-2088, Fax: (407) 299-6066
of Lasers in Airspace Course
21-23 at the DoubleTree Guest Suites, Orlando International Airport
Laser safety is an integral part of any laser light show. There are
several standards mandated by different regulatory organisations that apply
to laser light shows. The FDA through the U.S. Centre for Devices and
Radiological Health, (CDRH), enforces rules used to certify laser products.
The government considers both the laser system performing a light show and
the light show itself to be laser products, thus both need to be certified.
The Federal Aviation Administration (FAA) enforces regulations pertaining to
laser light transmitted through airspace.
All out of door light show operators need to be aware of their
responsibilities regarding airspace. The FAA enforces the 7400.2D regulation
which was developed using the recommendations of the Laser Safety Hazards
Sub-Committee of the SAE.
The Occupational Safety and Health Administration (OSHA) uses guidelines in
the American National Standards Institute (ANSI) Z136.1 "Safe Use of
Lasers" Standard. This standard indicates the level of safety training
necessary for the different classes of lasers. Class IIIB and Class IV
lasers require a Laser Safety Officer.
Each year Rockwell Laser Industries offers a course titled, "Safety of
Lasers in Airspace". The course features instructors on the G-10T Laser
Safety Hazards Sub-Committee and the ANSI Z136 Executive Committee. The
primary instructor is Greg Makhov, a member of ILDA and Director of Laser
Products at Lighting Systems Design, Inc.
This year the course is being held October 21-23 at the DoubleTree Guest
Suites, Orlando International Airport (407)240-5555. For registration or
more information please contact Michele Garvey, Training Co-ordinator at
Some of the information in the Backstage area is provided by the
persons or companies named on the relevant page(s). Laser F/X does
NOT endorse or recommend any products/services and is NOT
responsible for the technical accuracy of the information
provided. We provide this information as a service to
laserists using the Backstage area.
| World Scan | What's New
| Special Reports
| Virtual Visits | General Articles
| Digest ]
